Toyota 8fgcu30

  • Category: Forklifts (See all Forklifts for sale)
  • Manufacturer: Toyota (See all Toyota Equipment for sale)
  • Model: 8FGU30 (See all Toyota 8FGU30 for sale)

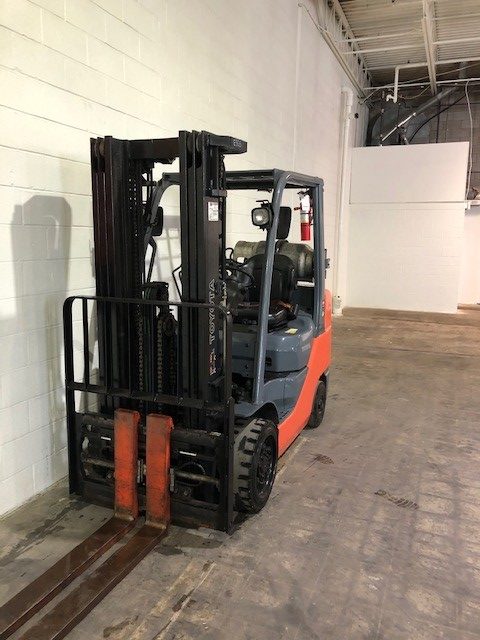

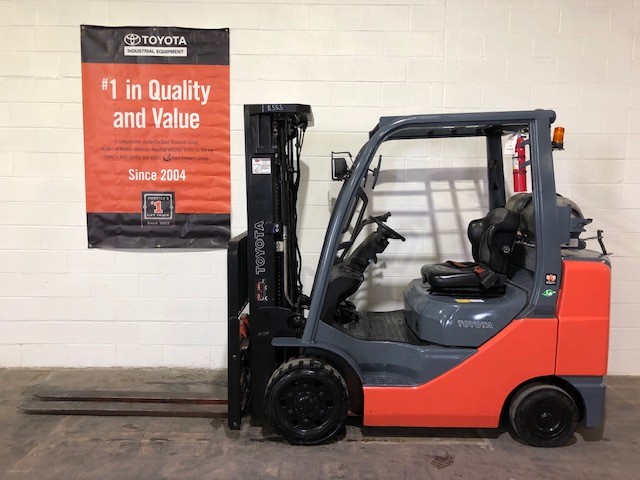

Page 1 8FGU 15, 18, 20, 25, 30, 32 8FDU 15, 18, 20, 25, 30, 32 62-8FDU 15, 18, 20, 25, 30 8FGCU 20, 25, 30, 32 Supplement Pub. CE118.; Page 2 Any change or modifications thereaf- ter will be informed by Toyota Industrial Equipment Parts & Service News. For the service procedures of the mounted engine, read the repair manuals listed below as reference together with this manual. 6,000 LB Toyota 8FGCU30 Cushion Forklift (St. Louis) This is a nice truck that is in good condition. The mast on this one is a bit higher than normal for those who need a little extra lift. It’s got new front tires and plenty of tread on the rears. Toyota 8FGCU30 Forklift. Imperial Metric. A Length To Fork Face. B Overall Width. F Height To Top Of Overhead Guard. G Max Fork Height. Fork Spread Max. Fork Spread Min-Outer Edge To Edge.

Brakes

Parking brakeMechanical
Service brakeHydraulic

Dimensions

Free lift5.4 in (14 cm)
Gradeability26%
Ground Clearance4.6 in (12 cm)
Height to Top of Overhead Guard7.2 ft (2 m)
Length to Fork Face9.2 ft (3 m)
Max Fork Height11 ft (3 m)
Overall Height - mast lowered7.2 ft (2 m)
Overall Width4.1 ft (1 m)
Right Angle Stack9.4 ft (3 m)
Turning Radius7.8 ft (2 m)
Wheelbase5.6 ft (2 m)

Engine

Battery12 V
Displacement136 cu in (0 m)
Engine MakeTOYOTA
Engine Model4Y - ECS - HP5
Fuel TypeGasoline
Number of Cylinders4
Power57 hp (43 kw)
Power Measured @2570 rpm
Torque118 lbs/ft
Torque Measured @2200 rpm

Hydraulic System

8fgcu308fgcu30Toyota
Main pump flow standard21 gal/min (79 l/min)
Maximum operating pressure2275 psi

MAST

Toyota 8fgcu30 Codes

Lift Speed100 ft/min
Load Capacity6000 lbs (2,722 kg)
Lower Speed98 ft/min
Max Fork Spread9.9 in (25 cm)

Operating Specifications

Toyota 8fgcu30 Wiring Diagram

Drawbar Pull4409.3 lbs (2,000 kg)
Fuel Capacity15.9 gal (60 l)
Max Speed11.2 mph (18 kph)
Number of Front Wheels2
Number of Rear Wheels2
Operating Weight9281.5 lbs (4,210 kg)
Tire TypePneumatic
Toyota

Tires

Toyota 8fgcu30 Forklift Parts Manual

Front Tires Size28 x 9-15-12PR (1)
Rear Tires Size6.50-10-10PR (1)
